What Should You Know About Rotational Viscometers?

Are you struggling to maintain product consistency or experiencing quality control issues? Many manufacturers face these challenges daily. The solution might be better understanding and measuring viscosity with the right tools.

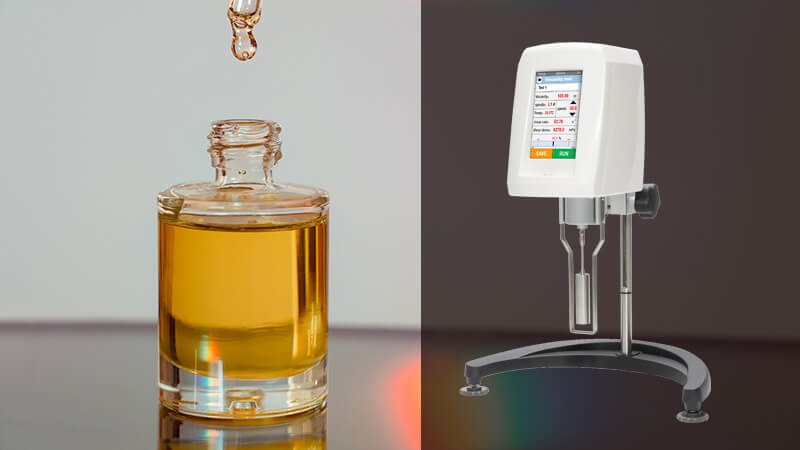

A rotational viscometer¹ is a precision instrument that measures fluid viscosity by rotating a spindle in a sample and calculating resistance to flow. It works by measuring the torque needed to rotate a spindle at a constant speed through the material being tested.

Having worked with rotational viscometers for over 10 years at Martests, I've helped countless clients solve quality control problems through proper viscosity measurement. Whether you're in paint manufacturing, food production, or cosmetics, understanding the basics of viscometry can dramatically improve your product consistency.

What Is The Principle Of A Rotational Viscometer?

Have you ever wondered how these instruments actually determine the thickness of a liquid? The principle is both elegant and precise, based on fundamental physical relationships.

Rotational viscometers work by measuring the torque required to rotate a spindle at a constant speed while immersed in the test fluid. As the spindle rotates, the fluid creates resistance proportional to its viscosity. The instrument measures this resistance and converts it to viscosity units.

I often explain this concept to my customers using a simple kitchen analogy. Think about stirring honey versus water with a spoon. You need to apply more force to maintain the same stirring speed in honey because it has higher viscosity. A rotational viscometer simply quantifies this difference in required force with high precision.

The core components that make this measurement possible include:

1. Motor - Provides consistent rotational force
2. Spindle - The rotating element that contacts the sample
3. Torque measuring system - Detects the resistance the fluid exerts on the spindle
4. Control system - Maintains constant speed and processes measurements
5. Display - Shows the viscosity reading in the appropriate units

Last month, I was helping an Italian paint manufacturer troubleshoot inconsistent product thickness. Their production line was experiencing quality variations despite following the same formulation. After analyzing their process with our rotational viscometer, we discovered temperature fluctuations were causing significant viscosity changes. By implementing temperature-controlled measurement protocols, they were able to stabilize their production quality.

The science behind rotational viscometry has been refined over decades, making today's instruments highly accurate and reliable when properly used. This fundamental principle serves as the foundation for all types of rotational viscometers, regardless of their specific design or application.

How Is Viscosity Calculated?

Are you confused about how the numbers on your viscometer relate to actual fluid properties? Understanding the underlying calculations helps you interpret results correctly and troubleshoot measurement issues.

Viscosity is calculated using the relationship between shear stress² (force per unit area) and shear rate (velocity gradient). The mathematical formula is η = τ/γ, where η is viscosity, τ is shear stress, and γ is shear rate. The viscometer measures torque and converts it to viscosity based on spindle geometry and rotation speed.

When I train new technicians at customer facilities in Southeast Asia, I break down this calculation into simpler terms. The rotational viscometer measures the torque (rotational force) required to turn the spindle through the fluid. This torque value is then converted to viscosity using calibration factors specific to the spindle geometry and rotation speed.

For a standard rotational viscometer, the calculation follows these steps:

1. The motor applies a known rotational speed to the spindle
2. The fluid resistance creates torque that's measured by the instrument
3. The instrument applies the appropriate calculation factors based on:
   • Spindle geometry (size and shape)
   • Rotational speed
   • Calibration constants
4. The result is displayed in viscosity units (usually centipoise or mPa·s)

I remember working with a cosmetics manufacturer in the Middle East who was getting inconsistent readings between their lab and production floor. When we examined their procedures, we discovered they were using different spindles without adjusting the calculation factors. Once we standardized their testing protocol, their measurements became consistent and reliable.

Different spindle types create different shear conditions in the fluid. For example, disk spindles are suitable for high-viscosity materials, while cylindrical spindles work better for lower viscosities. The instrument's software automatically accounts for these differences in its calculations.

For more advanced applications, the relationship between torque, spindle geometry, and rotational speed can be used to develop detailed rheological profiles that characterize how materials behave under different conditions. This is particularly important for non-Newtonian fluids whose viscosity changes with shear rate.

What Are The Different Types Of Viscosity?

Do you know which type of viscosity measurement is most relevant for your specific application? Choosing the wrong approach can lead to misleading results and poor quality control.

Viscosity is primarily classified as dynamic (absolute) viscosity or kinematic viscosity. Dynamic viscosity³ measures fluid resistance to flow regardless of density, while kinematic viscosity incorporates density effects. Additionally, materials can exhibit Newtonian or non-Newtonian behavior depending on how their viscosity responds to shear forces.

At Martests, I've helped customers select the appropriate measurement approach based on their specific materials and quality requirements. Let me explain the key viscosity classifications:

Dynamic vs. Kinematic Viscosity

Dynamic viscosity (η) measures the internal resistance to flow regardless of the fluid's density. It's typically expressed in Pascal-seconds (Pa·s) or centipoise (cP), with 1 Pa·s = 1000 cP. Rotational viscometers directly measure dynamic viscosity.

Kinematic viscosity⁴ (ν) is the ratio of dynamic viscosity to density, expressed in square meters per second (m²/s) or centistokes (cSt). It's particularly important in applications where gravity affects flow behavior, like in fuel systems or lubricating oils.

The relationship is simple: ν = η/ρ, where ρ is density.

I once worked with a lubricant manufacturer who was confused about which measurement to use. Their customers were requesting kinematic viscosity specifications, but they were measuring dynamic viscosity. We solved this by determining the density of their products and creating a conversion chart that allowed them to report both values.

Newtonian vs. Non-Newtonian Fluids

Newtonian fluids maintain constant viscosity regardless of the applied shear rate or force. Examples include water, mineral oils, and glycerin. For these materials, a single viscosity measurement at one speed is sufficient.

Non-Newtonian fluids show viscosity changes when different shear forces are applied. They're further classified as:

• Shear-thinning (pseudoplastic): Viscosity decreases as shear rate increases (e.g., ketchup, paint, blood)
• Shear-thickening (dilatant): Viscosity increases with increasing shear rate (e.g., cornstarch in water, some ceramic slurries)
• Yield stress fluids (Bingham plastics): Require minimum stress to begin flowing (e.g., toothpaste, mayonnaise)
• Thixotropic: Viscosity decreases over time at constant shear rate (e.g., yogurt, some gels)
• Rheopectic: Viscosity increases over time at constant shear rate (rare, some printer inks)

One of my European customers manufactures wall paints and needed to understand why their products performed inconsistently during application. By testing at multiple speeds, we demonstrated that their formulation was highly shear-thinning. This helped them adjust their formula to maintain the right balance between easy application (low viscosity at high shear) and good coverage (high viscosity at rest).

Understanding your material's viscosity type is crucial for proper testing, quality control, and predicting how it will behave in real-world applications. For non-Newtonian fluids, measuring at multiple speeds or over time provides much more useful information than a single-point measurement.

Which Types Of Rotational Viscometers Are Commonly Used?

Are you overwhelmed by the variety of viscometer options on the market? Each type has specific advantages that make it suitable for particular applications and materials.

The most common types of rotational viscometers include Brookfield-type spindle viscometers, cone and plate viscometers⁵, coaxial cylinder (bob and cup) viscometers, and specialized designs like Krebs viscometers⁶. Each design offers different benefits in terms of sample volume, accuracy, shear rate control, and price.

At our Martests factory in China, we produce several viscometer types to suit different customer needs. After years of consulting with clients across various industries, I've developed a clear understanding of each design's strengths and limitations:

Spindle (Brookfield-Type) Viscometers

These are the most widely used viscometers globally due to their versatility and relative affordability. They feature interchangeable spindles of different shapes and sizes.

Advantages:

• Wide measurement range (1 to 6,000,000 cP with different spindles)
• Flexible for various container sizes
• Easy operation and cleaning
• Lower cost than other designs
• Good for quick quality control checks

Limitations:

• Non-uniform shear rates throughout the sample
• Less precise for detailed rheological studies
• Requires larger sample volumes than some alternatives
  I've supplied these viscometers to numerous clients in South America who need reliable quality control equipment without the complexity or cost of more specialized instruments. One food ingredient manufacturer uses these for everything from thin sauces to thick pastes simply by changing spindles.

Cone and Plate Viscometers

These feature a cone-shaped spindle that rotates very close to a flat plate, with the sample sandwiched between.

Advantages:

• Precise, uniform shear rate throughout the sample
• Excellent for detailed rheological studies
• Requires minimal sample volume (often less than 1 mL)
• Good temperature control capabilities
• Can determine yield stress and other complex parameters

Limitations:

• Limited viscosity range compared to spindle viscometers
• Higher cost
• Cannot handle samples with large particles
• More complex operation and cleaning

A pharmaceutical client in the Middle East specifically requested this type for their R&D department because they needed precise rheological data with minimal sample consumption during new product development.

Coaxial Cylinder (Bob and Cup) Viscometers

These consist of a cylindrical bob that rotates inside a stationary cup containing the sample.

Advantages:

• Well-defined shear conditions
• Suitable for low to medium viscosity fluids
• Good for measuring flow curves and yield stress
• Excellent temperature control
• Complies with many international standards

Limitations:

• Limited in very high viscosity ranges
• Requires more sample than cone and plate
• Higher cost than basic spindle viscometers
• More complex cleaning procedure

Several of our European customers in the chemical industry prefer this design for its well-defined measurement geometry and compliance with international testing standards.

Specialized Viscometers

• Krebs Viscometers: Designed specifically for the paint industry, using Krebs Units (KU)
• Stormer Viscometers: Similar to Krebs but with different calibration
• CAP Viscometers: Combine cone and plate principles with high-speed capability
• Falling Ball Viscometers: Use gravity and timing for simplified measurements

Last year, I helped a paint distributor from Italy select a Krebs viscometer because his customers specifically requested results in KU units, which are standard in that industry.
When advising my customers, I always consider their specific requirements:

• Required accuracy and repeatability
• Sample characteristics (volume available, presence of particles)
• Viscosity range to be measured
• Budget constraints
• User expertise
• Compliance with industry standards

This approach ensures they get the right tool for their specific needs rather than the most expensive or complex option.

How Is A Rotational Viscometer Test Performed?

Do you find yourself uncertain about the proper steps for viscosity testing? Following the correct procedure is essential for accurate, repeatable results that truly reflect your material properties.

A standard rotational viscometer test involves selecting the appropriate spindle and speed, preparing a temperature-controlled sample, immersing the spindle to the correct depth, starting rotation, allowing the reading to stabilize, and recording the measurement. Critical factors include sample preparation, temperature control, and proper spindle selection.

Based on my experience training hundreds of operators in proper testing techniques, here's a detailed breakdown of the procedure:

Pre-Test Preparation

1. Calibration check: Verify the instrument is calibrated using reference standards or calibration procedures
2. Sample preparation: Ensure the sample is:
   • Homogeneous (well-mixed without air bubbles)
   • At the correct test temperature (typically 25°C unless otherwise specified)
   • In a container of adequate size (at least 10mm clearance around spindle)
3. Spindle and speed selection: Choose based on:
   • Expected viscosity range
   • Sample volume
   • Required accuracy
   • Industry standards/specifications

Test Execution

1. Attach the selected spindle to the viscometer
2. Level the instrument using the built-in bubble level
3. Lower the spindle into the sample to the marked immersion line
4. Start rotation at the selected speed
5. Allow reading to stabilize (typically 30-60 seconds)
6. Record the viscosity value, spindle number, rotation speed, and temperature
7. For non-Newtonian fluids, repeat at different speeds to develop a flow curve

Post-Test Activities

1. Stop rotation and raise spindle from sample
2. Clean spindle and container thoroughly
3. Properly document all test conditions and results
4. Interpret results based on material specifications

I remember visiting a customer in Southeast Asia who was getting inconsistent results despite using the same material. When I observed their testing process, I noticed the operator wasn't controlling the sample temperature. We implemented a simple water bath system, and their measurement variation dropped from ±15% to less than ±3%.

Common Testing Errors to Avoid

• Improper spindle selection: Using a spindle that generates readings below 10% or above 90% of the instrument's range reduces accuracy
• Incorrect immersion depth: Over or under-immersing the spindle significantly affects readings
• Temperature variations: Most materials change viscosity by 2-10% per degree Celsius
• Edge effects: Placing the spindle too close to the container walls
• Insufficient equilibration time: Not allowing the sample to reach thermal equilibrium
• Settling or separation: Testing non-homogeneous samples
• Air bubbles: Failing to remove air introduced during sample preparation

During a training session for a cosmetics manufacturer, I created a simple error demonstration that showed how improper spindle immersion could cause up to 20% measurement error. This visual example helped their team understand the importance of following proper procedures.

For the most accurate results, I always recommend creating a detailed standard operating procedure (SOP) for each material you regularly test. This should specify exact conditions including container size, sample volume, temperature, spindle type, rotation speed, and equilibration time. Following such a procedure dramatically improves measurement consistency between different operators and testing occasions.

What Are The Advantages And Limitations Of Using A Rotational Viscometer?

Are you trying to decide if a rotational viscometer is the right instrument for your application? Understanding both its strengths and weaknesses will help you make an informed decision and get the most value from your investment.

Rotational viscometers offer advantages including wide measurement range, ease of use, versatility across various materials, and good repeatability. However, they have limitations including lower precision for complex rheological behavior, sensitivity to proper technique, and potential measurement artifacts with certain materials.

Having supplied rotational viscometers to hundreds of clients across different industries, I've collected extensive feedback on their practical benefits and challenges. Here's my comprehensive assessment:

Advantages

1. Versatility: Rotational viscometers can test a wide range of materials from thin liquids to thick pastes by simply changing spindles.

   One of my clients in Europe uses a single instrument to test everything from thin solvents to thick adhesives by utilizing different spindle geometries.

2. Wide measurement range: Modern instruments can measure from 1 to 6,000,000 cP with the appropriate spindles.
3. Non-destructive testing: The sample can often be recovered after testing, which is valuable for expensive materials.
4. Ease of operation: Basic models are relatively simple to use after minimal training.
5. Good repeatability: When proper procedures are followed, results are highly repeatable.
   A quality control manager from a Southeast Asian food manufacturer told me their team achieved less than 2% variation between operators after implementing our standardized testing procedures.
6. Cost-effective: Compared to advanced rheometers, rotational viscometers provide excellent value for most quality control applications.
7. Conformity to standards: Many industry standards specifically call for rotational viscometer measurements, making them essential for regulatory compliance.

Limitations

1. Limited rheological information: Basic rotational viscometers provide viscosity values but not detailed viscoelastic properties.

   I once worked with a polymer manufacturer who needed more detailed material characterization. We recommended complementing their rotational viscometer with oscillatory rheological testing for their R&D department.

2. Operator-dependent results: Measurement accuracy depends significantly on proper technique and sample preparation.
3. Edge effects and flow anomalies: The geometry of the test container and sample can create measurement artifacts.
4. Temperature sensitivity: Results are highly dependent on precise temperature control, which basic models may not provide.
5. Limited for very low viscosities: Standard rotational viscometers may lack precision for very low-viscosity fluids.
6. Sample requirements: Some designs require relatively large sample volumes.
7. Thixotropic materials: Time-dependent viscosity changes can be challenging to characterize with basic models.

When to Consider Alternatives

In some cases, I recommend clients consider alternative methods:

• For extremely low viscosities (below 1 cP): Capillary viscometers
• For detailed material characterization: Advanced rheometers with oscillatory capability
• For in-line process control: Process viscometers specifically designed for continuous monitoring
• For highly structured fluids where flow behavior is critical: Rheometers with controlled stress capability
• For ultra-small sample volumes: Microfluidic rheometry systems

I remember advising an Italian cosmetics manufacturer who initially wanted a standard rotational viscometer but needed to characterize the elastic properties of their gel formulations. After discussing their requirements, we determined a small rheometer with oscillatory capabilities was a better fit for their specific needs, even though it represented a higher initial investment.
Understanding these advantages and limitations helps you select the right instrument for your specific application and interpret your results appropriately. For many quality control and product development applications, a good rotational viscometer strikes the perfect balance between capability, ease of use, and cost.

In Which Fields Are Rotational Viscometers Commonly Used?

Are you wondering if viscosity measurement is relevant to your industry? You might be surprised by the wide range of applications where rotational viscometers play a crucial role in quality control and product development.

Rotational viscometers are extensively used in industries including paints and coatings, food and beverage, pharmaceuticals, cosmetics, petrochemicals, adhesives, and many others. Any industry where the flow properties of liquids or semi-solids affect product performance, manufacturing processes, or quality control can benefit from viscosity measurement.

Through my work at Martests, I've supplied viscometers to customers across diverse sectors. Here's how different industries leverage these instruments:

Paints and Coatings

The paint industry is one of the largest users of rotational viscometers. Viscosity directly affects:

• Application properties (brushability, sprayability)
• Sagging and leveling
• Film thickness
• Hiding power
• Storage stability

I've worked with numerous paint manufacturers across Europe who use our viscometers at multiple stages in their processes. One Italian customer tests every batch of paint at three different speeds to ensure consistent application properties across their product line.

Food and Beverage

Food producers rely on viscosity measurements for:

• Texture control in sauces, dressings, and dairy products
• Quality control in chocolate, honey, and jams
• Process optimization for filling and dispensing
• Mouthfeel prediction and consistency
• Shelf-life stability assessment

A food ingredient supplier in Southeast Asia uses our viscometers to ensure their modified starches deliver consistent thickening properties for their customers in the sauce and dressing industry.

Pharmaceuticals and Healthcare

Pharmaceutical applications include:

• Formulation development of syrups, suspensions, and creams
• Manufacturing process control
• Quality assurance of final products
• Injectability assessment of parenteral formulations
• Biopharmaceutical processing

One of our Middle Eastern pharmaceutical clients uses rotational viscometers to ensure consistent flow properties in their cough syrup production, which is critical for accurate dosing.

Cosmetics and Personal Care

This industry relies heavily on viscosity for:

• Formulation of shampoos, lotions, and creams
• Stability testing
• Sensory properties prediction
• Process optimization
• Packaging and dispensing performance

I recently helped a cosmetics manufacturer troubleshoot a customer complaint about inconsistent pump dispensing. By adjusting their viscosity specifications and testing protocols, they resolved the issue successfully.

Petrochemicals and Lubricants

In this sector, viscosity measurements are critical for:

• Lubricant performance characterization
• Fuel quality control
• Oil blending operations
• Hydraulic fluid specification
• Additive effectiveness evaluation

Several of our European customers in the lubricant manufacturing sector rely on rotational viscometers to verify their products meet international standards and specifications.

Adhesives and Sealants

Manufacturers in this industry measure viscosity to control:

• Application properties
• Bond strength
• Curing characteristics
• Production consistency
• Dispensing system performance

A South American adhesive manufacturer I work with uses viscosity measurements to ensure their wood glue maintains the perfect balance between easy application and minimal runoff.

Other Notable Applications

• Construction materials: Concrete admixtures, gypsum slurries, and asphalt
• Paper and pulp: Coating formulations and sizing agents
• Textiles: Dye solutions, sizing agents, and fabric treatments
• Electronics: Solder pastes, encapsulants, and conformal coatings
• Agriculture: Pesticide formulations and fertilizer suspensions
• Wastewater treatment: Flocculant and coagulant optimization

One particularly interesting application I encountered was with a customer who manufactures ceramic slurries for 3D printing. They discovered that precise viscosity control was the key factor in achieving dimensional accuracy in their printed components.

The versatility of rotational viscometers makes them valuable tools across virtually any industry where the flow properties of materials matter. In each of these fields, viscosity measurement helps ensure product quality, optimize manufacturing processes, and meet customer expectations for performance and consistency.

Conclusion

A rotational viscometer is an essential tool for controlling product quality and consistency across many industries. By understanding the principles, measurement techniques, and applications, you can leverage viscosity measurement to improve your products and processes.

---
