Introductions

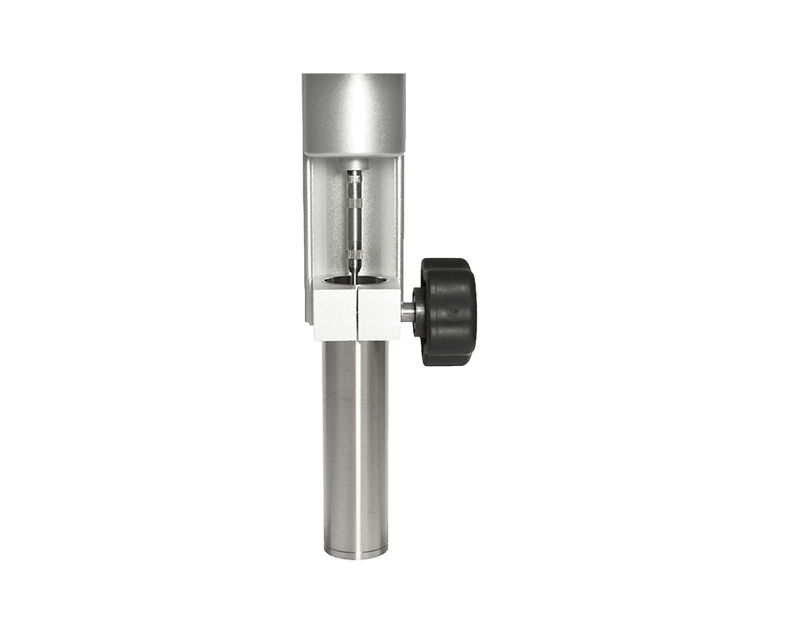

The new Ultra-Low Viscosity Adapter is designed to work seamlessly with our viscometers for accurate, repeatable measurement of low-viscosity samples. Featuring a precision-engineered cylindrical rotor and sample sleeve, its coaxial structure meets strict rheological standards to ensure highly reliable test results.
- 1 cP Minimum Viscosity
- Accurate at Set Shear Rate
- Durable Stainless Steel
- Secure Clamp Ring Design
- Shear Rate Constant: 1.224
- Sample Volume: 22 mL
Difference Between ULR and ULR-Plus
A quick guide to selecting between ULR and ULR-Plus based on your sample and accuracy requirements.

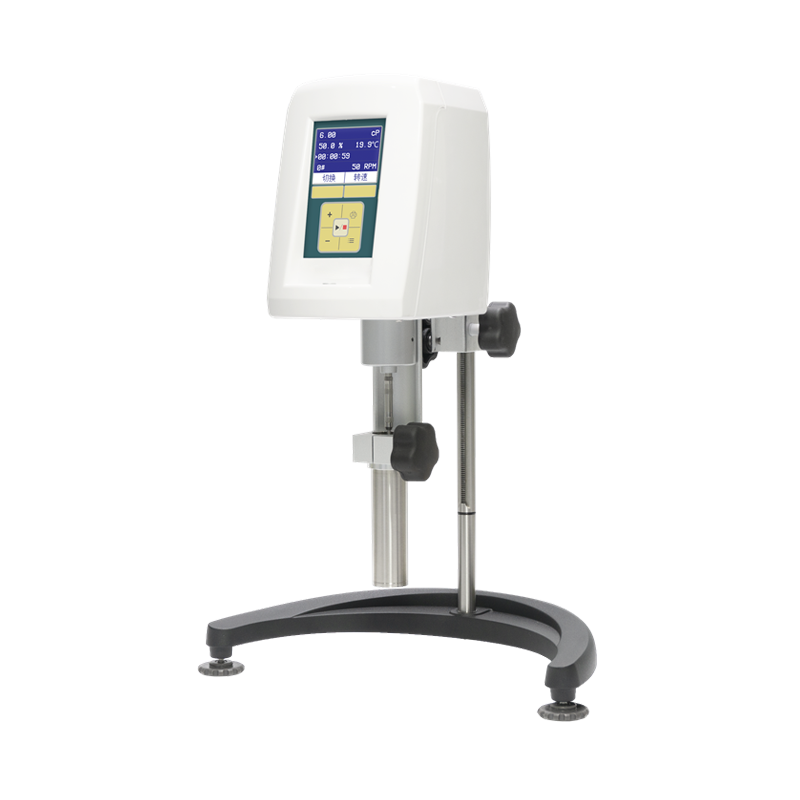

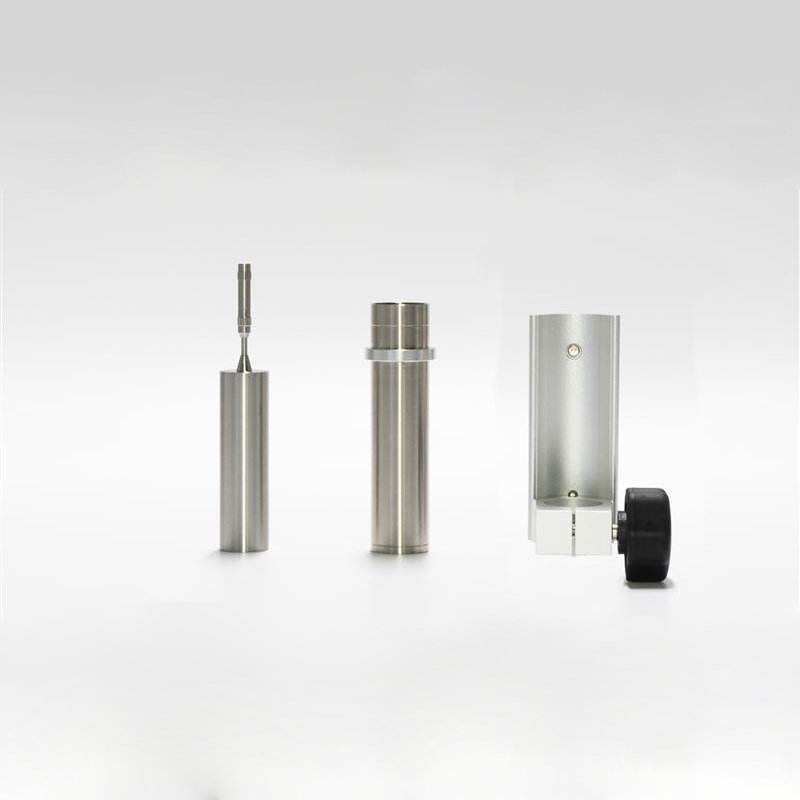

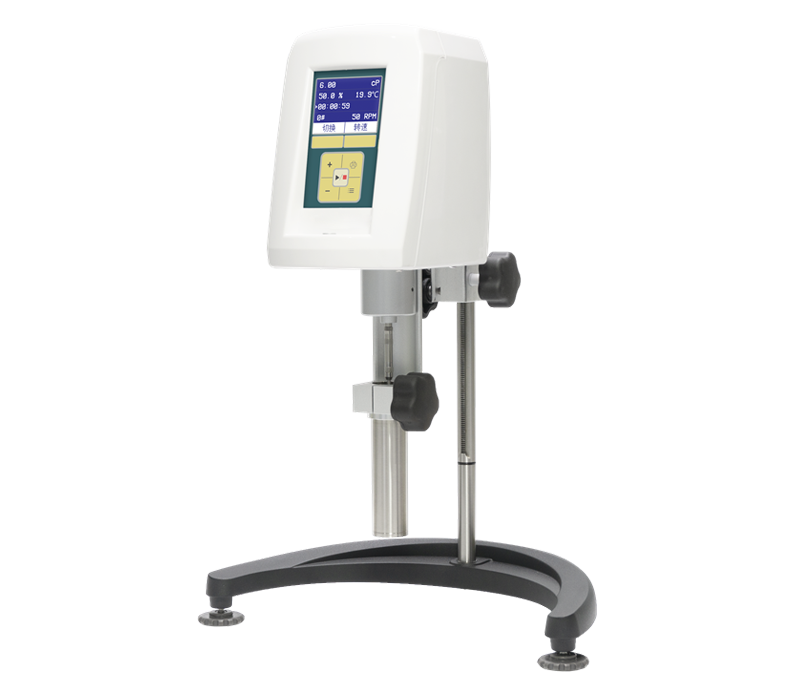

ULR Adatper
The ULR Adapter does not include a water jacket and cannot be used with a water bath for temperature control of the test sample.

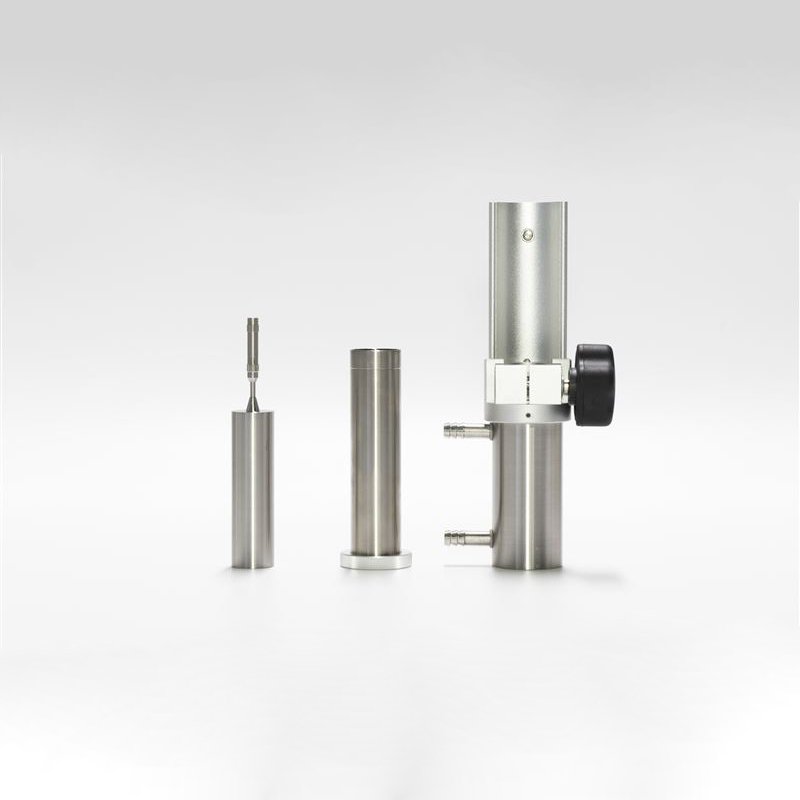

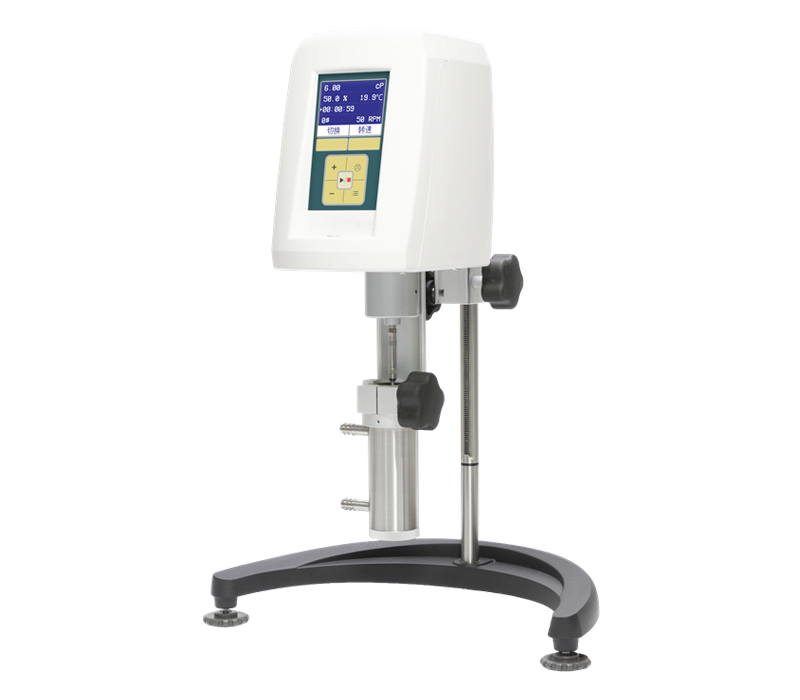

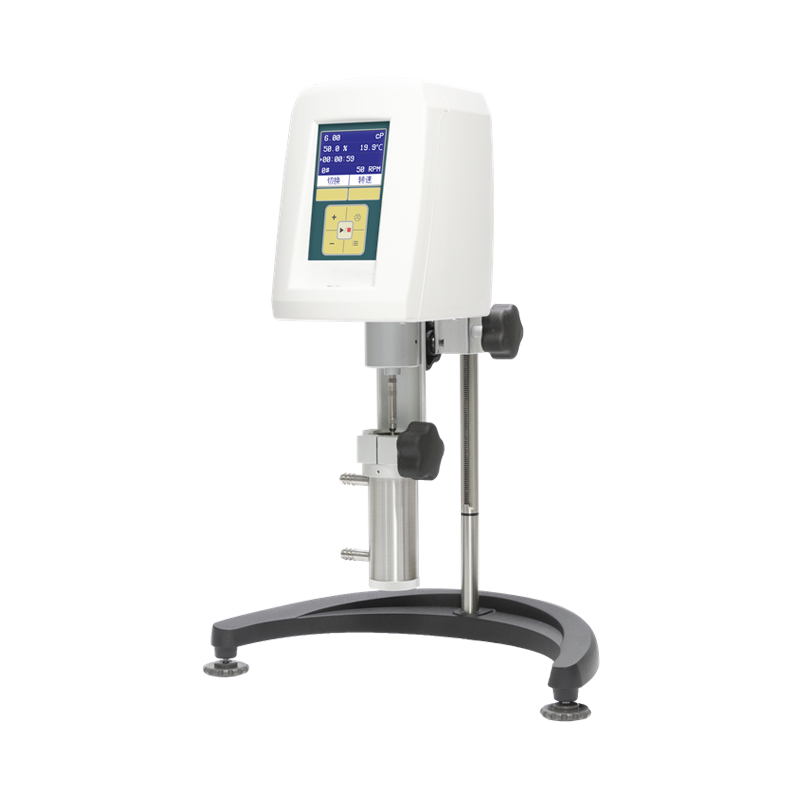

ULR-Plus Adapter
Equipped with a water jacket, the ULR-Plus Adapter supports water bath temperature regulation during testing.
Ultra-Low Viscosity Adapter Test Range cP (mPa·s)
Viscosity unit conversion: 1Pa.s=1000mPa.s, 1P=100mPa.s, 1mPa.s=1cP, K=1,000.
| Model | Range |
|---|---|
| NDJ-5S, NDJ-8S, NDJ-5T, NDJ-8T | 1-100 |
| LVDV-1, LVDV-1T | 1-200 |
| RVDV-1, RVDV-1T | 6.4-500 |
| HADV-1, HADV-1T | 12.8-1k |
| HBDV-1, HBDV-1T | 51.2-2k |
| LVDV-2, LVDV-2T | 1-200 |
| RVDV-2, RVDV-2T | 3.2-500 |
| HADV-2, VADV-2T | 6.4-1k |
| HBDV-2, HBDV-2T | 25.6-2k |
