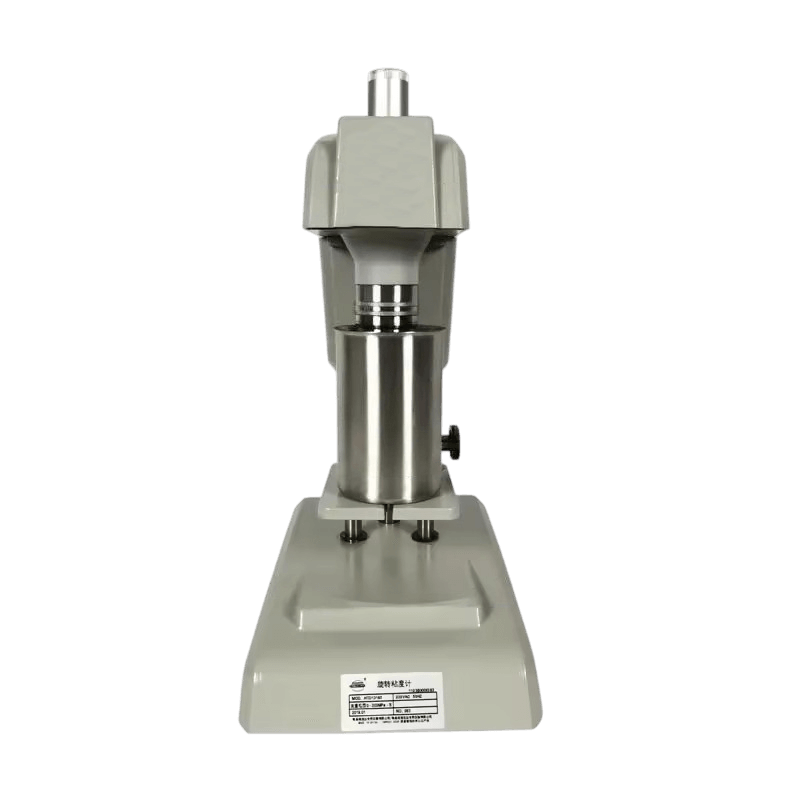

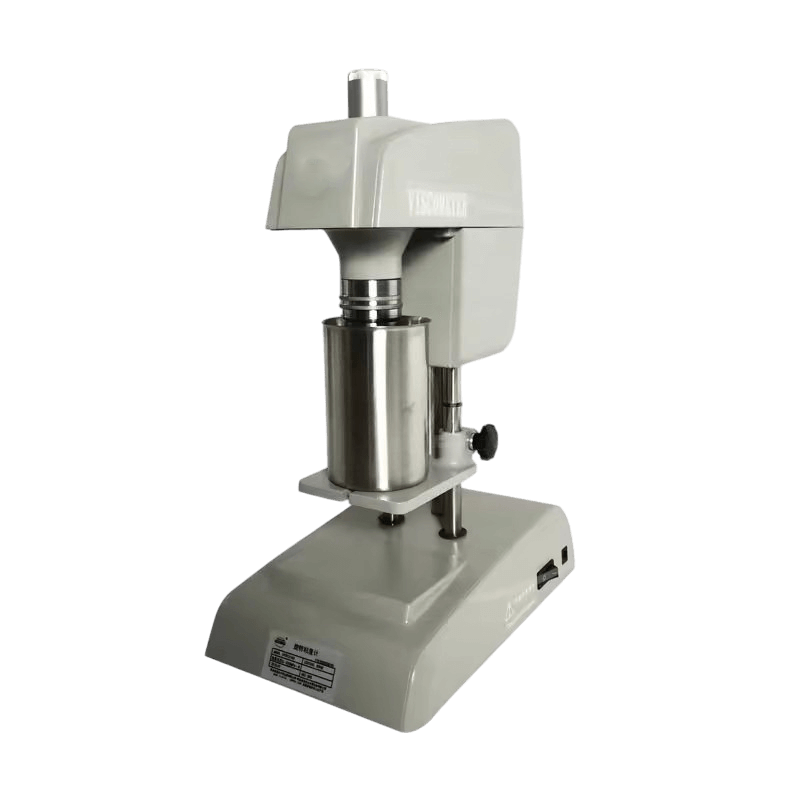

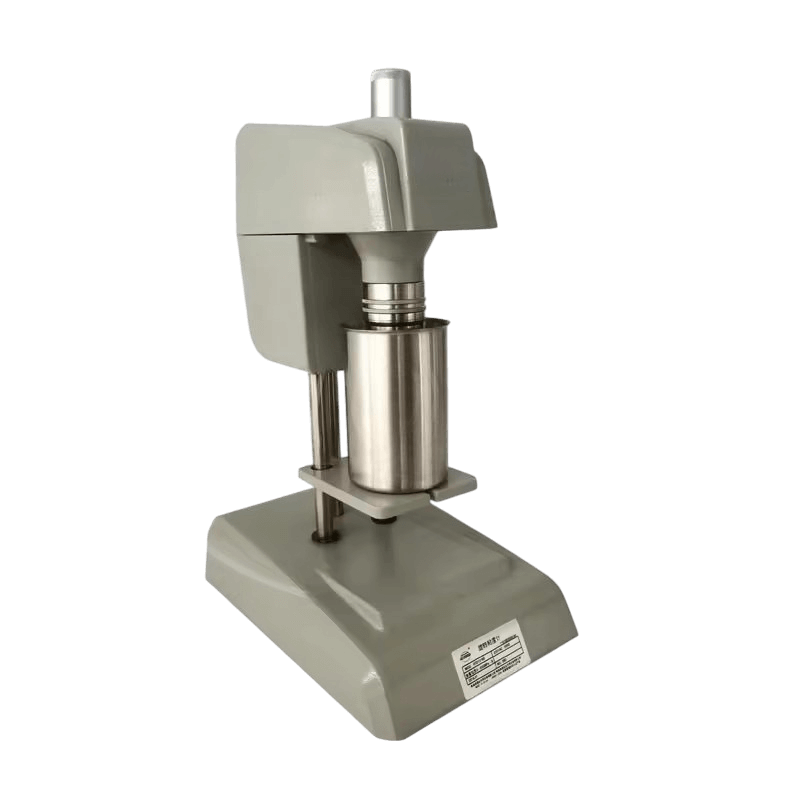

HTD13185 Viscometer
Coaxial Cylinder Design for Accurate Testing
Uses a coaxial cylinder system where fluid is sheared between an outer cylinder and an inner bob, enabling precise viscosity measurement.
Direct-Reading Viscosity Measurement
Measures torque caused by fluid drag and displays viscosity directly on the dial at standard speed; supports multipliers for other speeds.
Ideal for Newtonian and Non-Newtonian Fluids
Provides accurate readings for Newtonian fluids and simple approximations for pseudo-plastic fluids like drilling muds.
Customizable Test Conditions

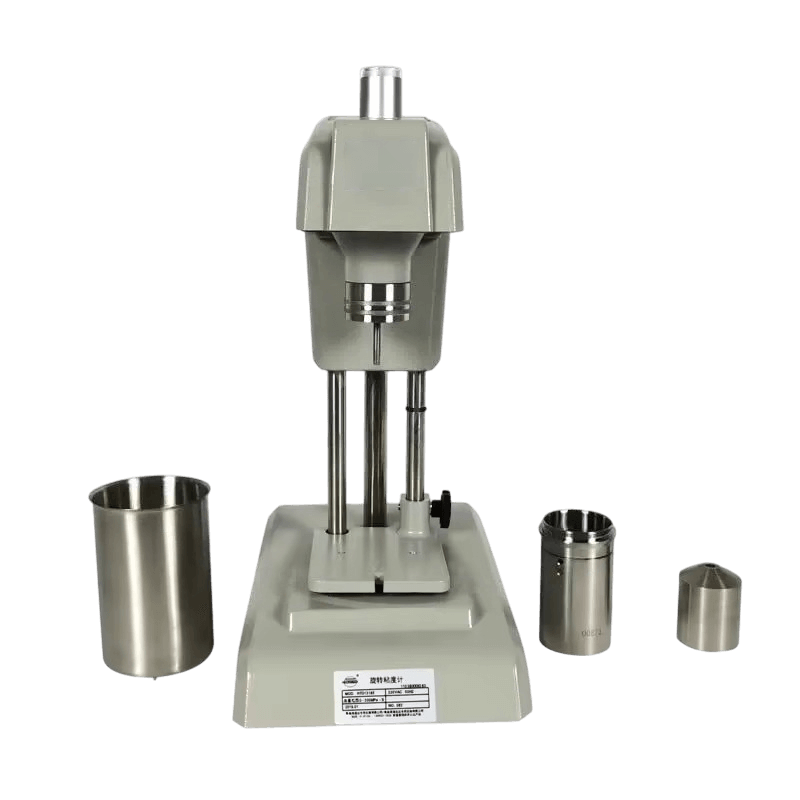

Rotor speed, bob size, and torsion springs are easily changed to cover a wide range of shear rates and fluid types.
Specifications
| Model | HTD13185 |
|---|---|
| Viscosity Range (F1 Measure Component) (Newtonian Fluid) | 0.5~30000 mPa.s |
| Viscosity Range (F1 Measure Component) (Non-Newtonian Fluid) | 0~150 mPa.s |
| Viscosity Range (F0.2 Measure Component) (Newtonian Fluid) | 0.5~6000 mPa.s |
| Viscosity Range (F0.2 Measure Component) (Non-Newtonian Fluid) | 0~30 mPa.s |
| Shear Stress (F1 Measure Component) | 0~153.3 Pa |
| Viscosity Range (F0.2 Measure Component) | 0~30.7 Pa |
| Accuracy (Newtonian Fluid) | ±1 (1~25 mPa.s ); ±4 (>25 mPa.s) |
| Speed (rpm/min) | 0.9, 1.8, 3, 6, 30, 60, 90, 100, 180, 200, 300, 600 |
| Motor Power | 120W |
| Power Supply | AC100-240V; 50Hz |
| Net Weight | 6.22kg |
| Dimensions | 300×290×440（mm） |
