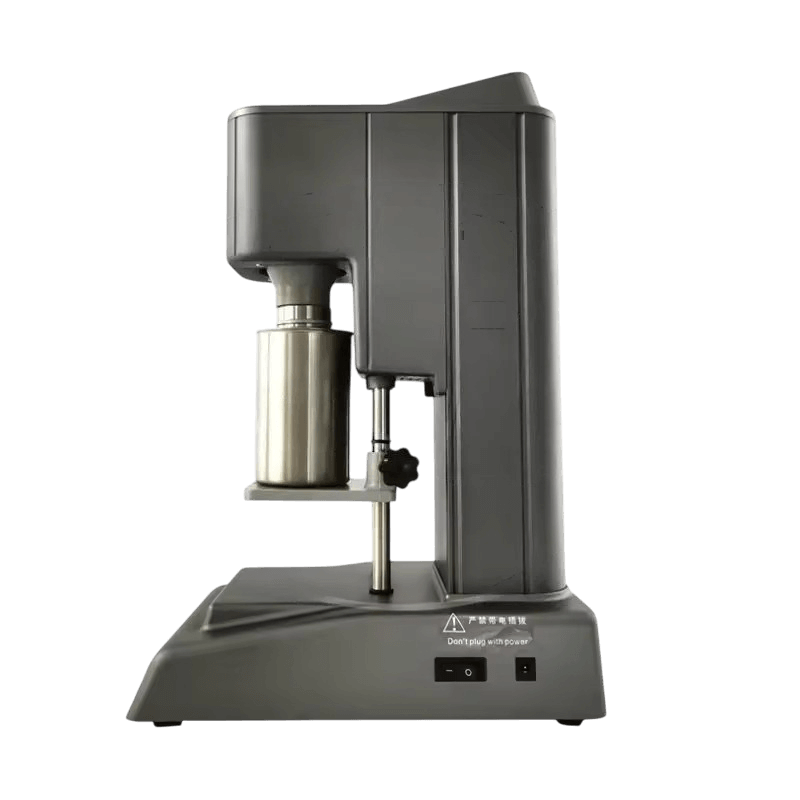

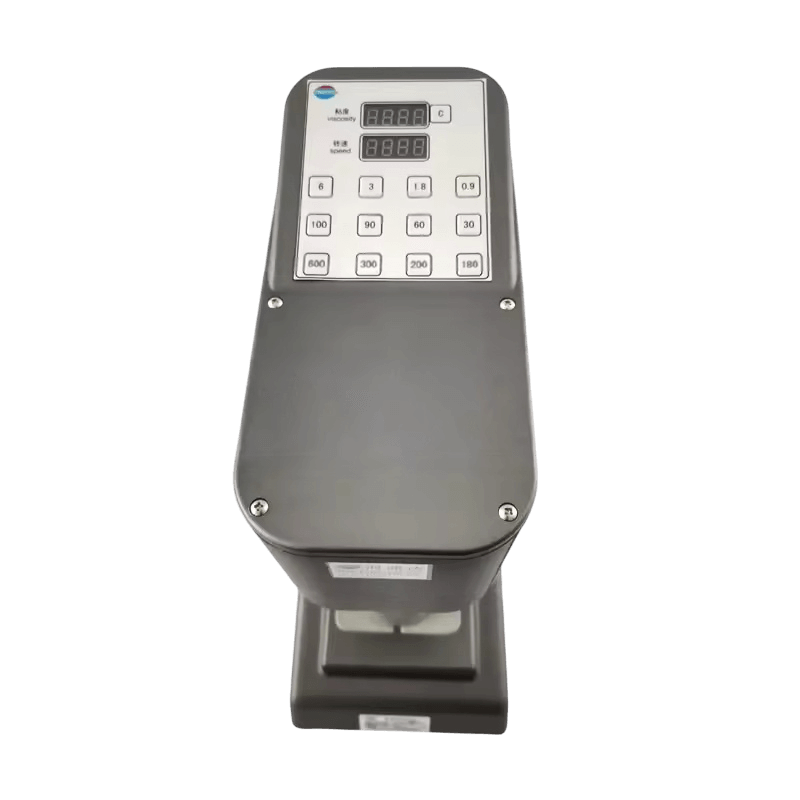

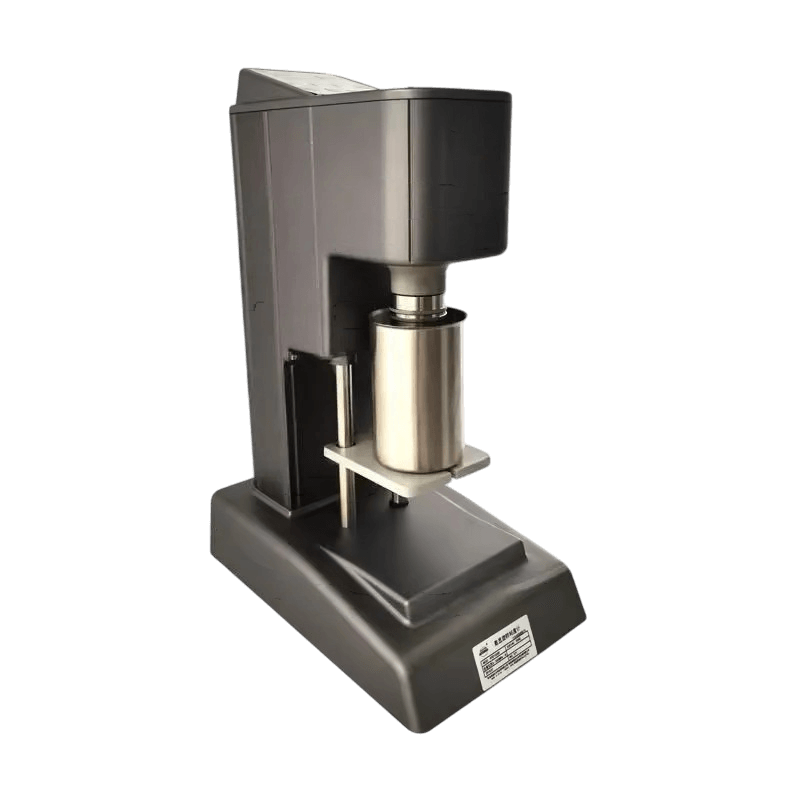

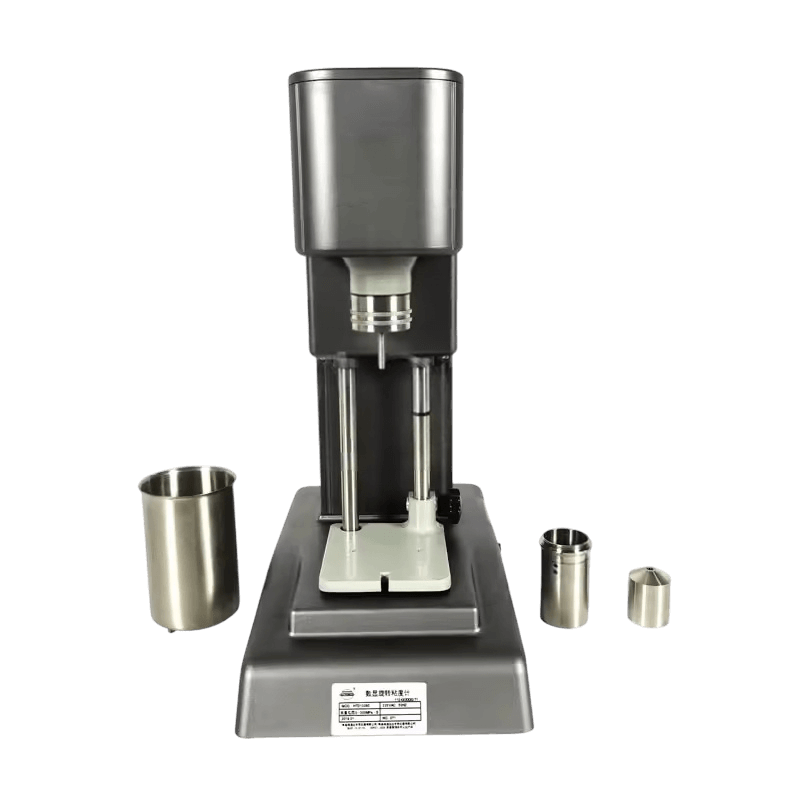

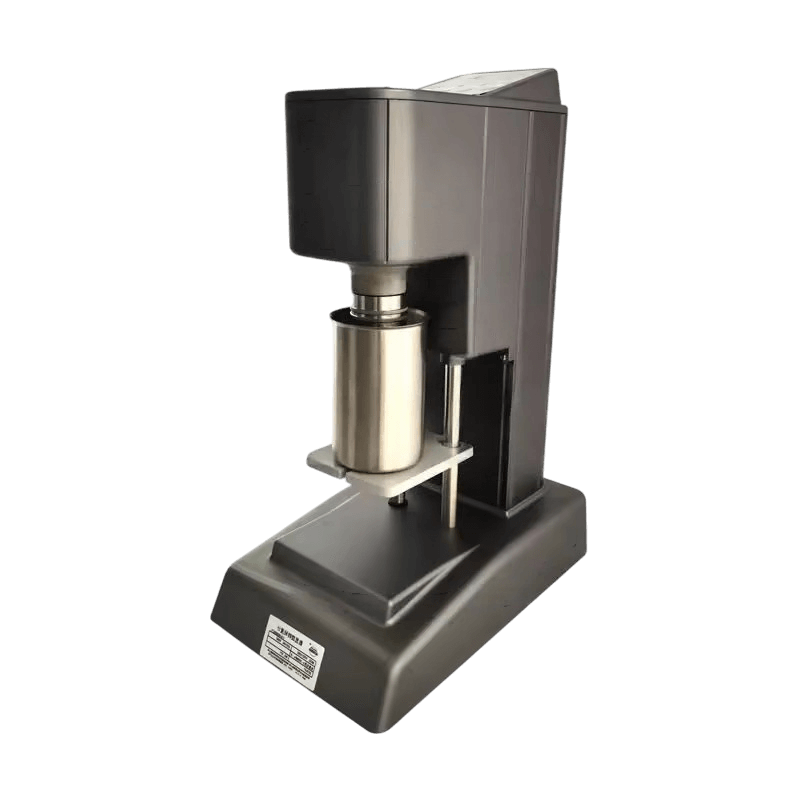

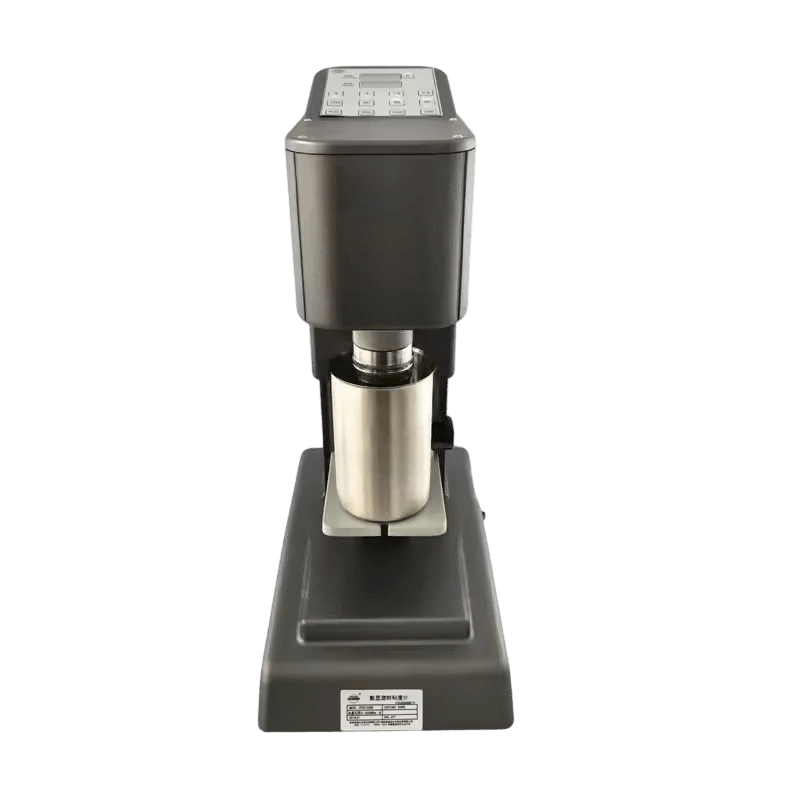

HTD13285 Coaxial Cylinder Viscometer
- Maximum Range Up to 100,000 mPa.s
- Accuracy: ±1 (1~25 mPa.s); ±4 (>25 mPa.s)
Technical Specifications
| Model | HTD13285 |
|---|---|
| Viscosity Range (F1 Measure Component) (Newtonian Fluid) | 0.5~100000 mPa.s |
| Viscosity Range (F1 Measure Component) (Non-Newtonian Fluid) | 0~150 mPa.s |
| Viscosity Range (F0.2 Measure Component) (Newtonian Fluid) | 0~6000 mPa.s |
| Viscosity Range (F0.2 Measure Component) (Non-Newtonian Fluid) | 0~30 mPa.s |
| Shear Stress (F1 Measure Component) | 0~153.3 Pa |
| Viscosity Range (F0.2 Measure Component) | 0~30.7 Pa |
| Accuracy (Newtonian Fluid) | ±1 (1~25 mPa.s ); ±4 (>25 mPa.s) |
| Speed (rpm/min) | 0.9, 1.8, 3, 6, 30, 60, 90, 100, 180, 200, 300, 600 |
| Motor Power | 40W |
| Power Supply | Input: AC100-240V, 50Hz; Output: DC24V, 5A |
| Net Weight | 7.24kg |
| Dimensions | 310×200×470 (mm) |
