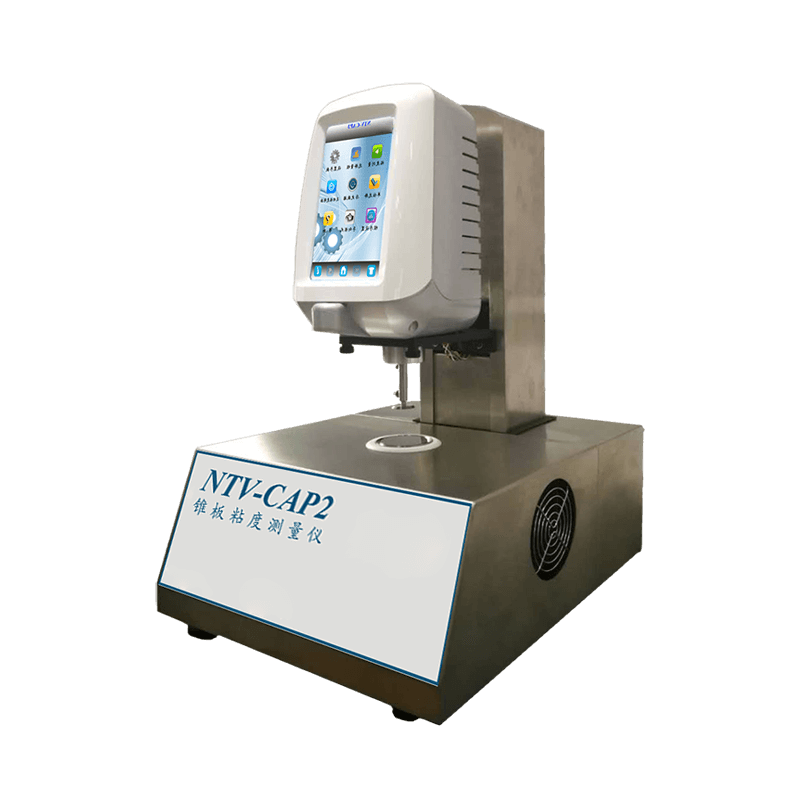

NTV-CAP2 Cone and Plate Viscometer
Achieve exceptional viscosity accuracy with the NTV-CAP2 Cone and Plate Viscometer, ideal for precise and efficient measurement across various applications.
- Maximum Range Up to 18,750 cP
- Accuracy: ±2%
NTV-CAP2 Viscosity Range
Viscosity unit conversion: 1Pa.s=1000mPa.s, 1P=100mPa.s, 1mPa.s=1cP, M=1,000,000, K=1,000, FS=Full Scale.
| Spindle No. | Shear Rate | Sample Volume | NTV-CAP2H(400rpm) | NTV-CAP2H(750rpm) | NTV-CAP2H(900rpm) |
|---|---|---|---|---|---|
| CAP-01 | 13.3N | 67μL | 47-469 mPa.s | 25-250 mPa.s | 20-208 mPa.s |
| CAP-02 | 13.3N | 38μL | 90-938 mPa.s | 50-500 mPa.s | 40-417 mPa.s |
| CAP-03 | 13.3N | 24μL | 180-1875 mPa.s | 100-1000 mPa.s | 80-833 mPa.s |
| CAP-04 | 3.3N | 134μL | 300-3750 mPa.s | 200-2000 mPa.s | 170-1667 mPa.s |
| CAP-05 | 3.3N | 67μL | 600-7500 mPa.s | 400-4000 mPa.s | 300-3333 mPa.s |
| CAP-06 | 3.3N | 30μL | 1500-18750 mPa.s | 1000-10000 mPa.s | 800-83333 mPa.s |
| CAP-07 | 2.0N | 1700μL | 78-787 mPa.s | N/A | N/A |
| CAP-08 | 2.0N | 400μL | 313-3125 mPa.s | N/A | N/A |
| CAP-09 | 2.0N | 100μL | 1250-12500 mPa.s | N/A | N/A |
| CAP-10 | 5.0N | 170μL | 100-1250 mPa.s | N/A | N/A |
Technical Specifications
| Item | Description | ||||
|---|---|---|---|---|---|
| Accuracy | ±2% (Newtonian fluid FS) | ||||
| Temperature Low | -5℃~-120℃ | ||||
| Temperature High | RT+5℃~+250℃ | ||||
| Temperature Accuracy | ±0.1℃ | ||||
| Power Supply | 100V-240V | ||||
| Optional Accessories | • Standard Oil • CAP Spindle • DV Software | ||||
Accessories Solutions
Unlock more testing possibilities with our professional accessories – designed to expand your viscometer’s capabilities.
Viscosity Standards
Viscosity standard solution of silicone oil type is used for the calibration of your viscometer, which is convenient to use and reliable in data.
- 450ml per bottle
- 5 cP, 50 cP, 340 cP, 1800 cP, 6190 cP, 9757 cP
NTV-CAP Spindle
The NTV-CAP Spindle for Cone and Plate Viscometers ensures unparalleled precision and consistency in viscosity measurements, tailored for professionals demanding top-notch accuracy.
SNB Software
SNB Software for Viscometers enhances viscosity measurement by providing real-time data tracking, customizable reporting, and improved workflow efficiency.
