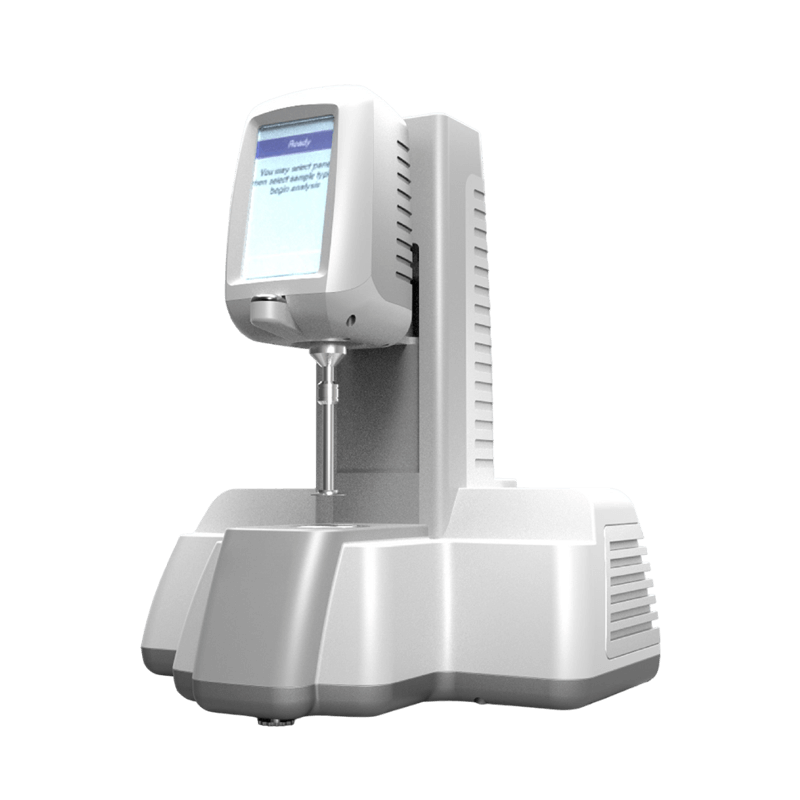

NTV-CAP3 Cone and Plate Rheometer
Experience precise rheological analysis with the NTV-CAP3 Cone and Plate Rheometer, meticulously engineered for accurate and reliable viscosity measurements.
- Maximum Range Up to 1,500,000 cP
- Accuracy: ±2%
NTV-CAP3 Viscosity Range
Viscosity unit conversion: 1Pa.s=1000mPa.s, 1P=100mPa.s, 1mPa.s=1cP, M=1,000,000, K=1,000, FS=Full Scale.
| Spindle No. | Shear Rate | Sample Volume | NTV-CAP3 @5-1000rpm |
|---|---|---|---|
| CAP-01 | 13.3N | 67μL | 20-37500 mPa.s |
| CAP-02 | 13.3N | 38μL | 37-75000 mPa.s |
| CAP-03 | 13.3N | 24μL | 75-1500000 mPa.s |
| CAP-04 | 3.3N | 134μL | 150-300000 mPa.s |
| CAP-05 | 3.3N | 67μL | 300-600000 mPa.s |
| CAP-06 | 3.3N | 30μL | 750-1500000 mPa.s |
| CAP-07 | 2.0N | 1700μL | 32-63000 mPa.s |
| CAP-08 | 2.0N | 400μL | 125-250000 mPa.s |
| CAP-09 | 2.0N | 100μL | 500-1000000 mPa.s |
| CAP-10 | 5.0N | 170μL | 50-100000 mPa.s |
Technical Specifications
| Item | Description | |||
|---|---|---|---|---|
| Accuracy | ±2% (Newtonian fluid FS) | |||
| Temperature Low | -5℃~-120℃ | |||
| Temperature High | RT+5℃ ~ +250℃ | |||
| Temperature Accuracy | ±0.1℃ | |||
| Power Supply | 100V-240V | |||
| Optional Accessories | • Standard Oil • CAP Spindle • DV Software | |||
Accessories Solutions
Unlock more testing possibilities with our professional accessories – designed to expand your viscometer’s capabilities.
Viscosity Standards
Viscosity standard solution of silicone oil type is used for the calibration of your viscometer, which is convenient to use and reliable in data.
- 450ml per bottle
- 5 cP, 50 cP, 340 cP, 1800 cP, 6190 cP, 9757 cP

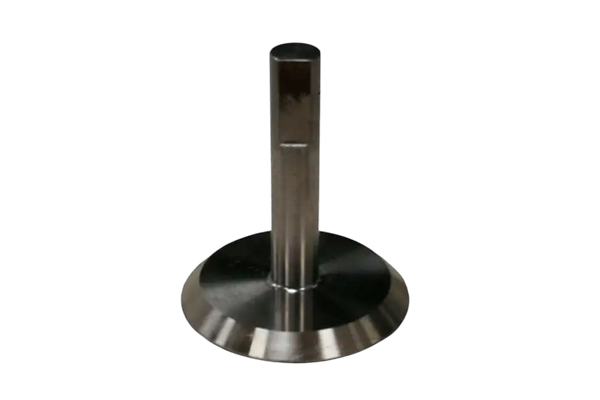

NTV-CAP Spindle
The NTV-CAP Spindle for Cone and Plate Viscometers ensures unparalleled precision and consistency in viscosity measurements, tailored for professionals demanding top-notch accuracy.
DV Software
DV Software for Viscometers enhances viscosity measurement by providing real-time data tracking, customizable reporting, and improved workflow efficiency.
