Small-amount Sample Adapter
Suitable for special accessories measuring small-amount sample viscosities.
Viscosity Range
Viscosity unit conversion: 1Pa.s=1000mPa.s, 1P=100mPa.s, 1mPa.s=1cP, K=1,000.
| Model | Rotor 18 (8mL, 1.32N) | Rotor 25 (9mL, 0.22N) | Rotor 31 (11mL, 0.34N) | Rotor 34 (11mL, 0.28N) |
|---|---|---|---|---|
| LVDV-1, LVDV-1T | 3~10 K | 480~1.6 M | 30~100 K | 60~200 K |
| LVDV-2, LVDV-2T | 1.5~30 K | 240~4.8 M | 15~300K | 30~600 K |
| Model | Rotor 21 (8mL, 0.93N) | Rotor 27 (12mL, 0.34N) | Rotor 28 (13mL, 0.28N) | Rotor 29 (12mL, 0.25N) |
|---|---|---|---|---|
| RVDV-1, RVDV-1T | 50~167 K | 250~834 K | 500~1.7 M | 1 K~3.3 M |
| RVDV-2, RVDV-2T | 25~500 K | 125~2.5 M | 250~5 M | 500~10 M |
| HADV-1, HADV-1T | 100~333 K | 500~1.7 M | 1 K~3.3 M | 2 K~6.6 M |
| HADV-2, HADV-2T | 50~1 M | 250~5 M | 500~10 M | 1 K~20 M |
| HBDV-1, HADV-1T | 400~1.3 K | 2 K~6.7 M | 4 K~13.3 M | 8 K~26.6 M |
| HBDV-2, HADV-2T | 200~4 M | 1 K~20 M | 2 K~40 M | 4 K~80 M |
Porducts Features
The small-amount sample adapter measures absolute viscosity with precision, using only 8 to 13 mL of sample. It consists of a cylindrical sample cylinder and rotor.

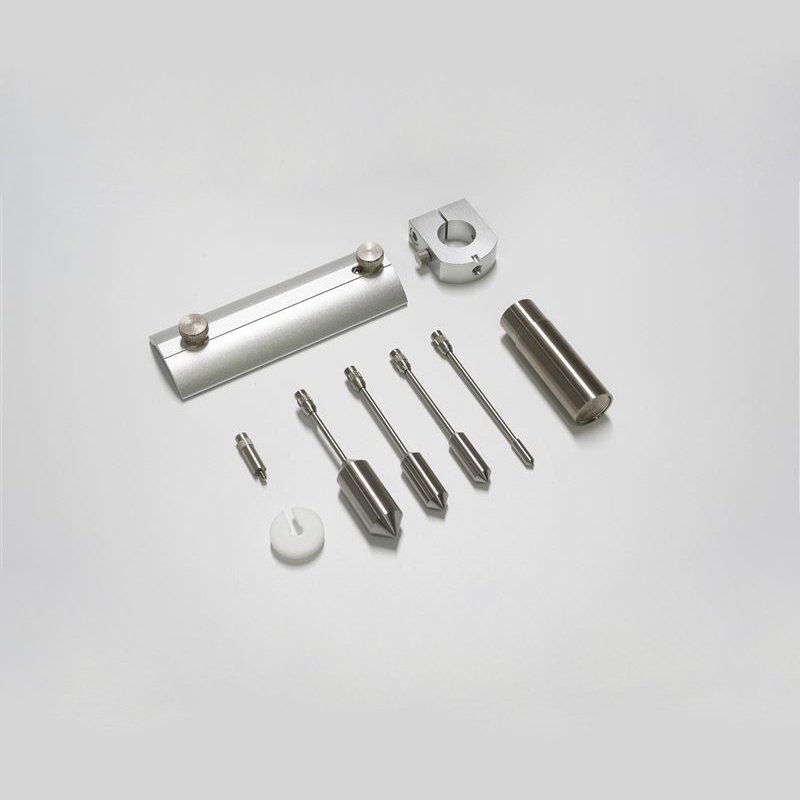

SSR Small-amount Sample Adapter
The SSR Adapter does not include a water jacket and cannot be used with a water bath for temperature control of the test sample.

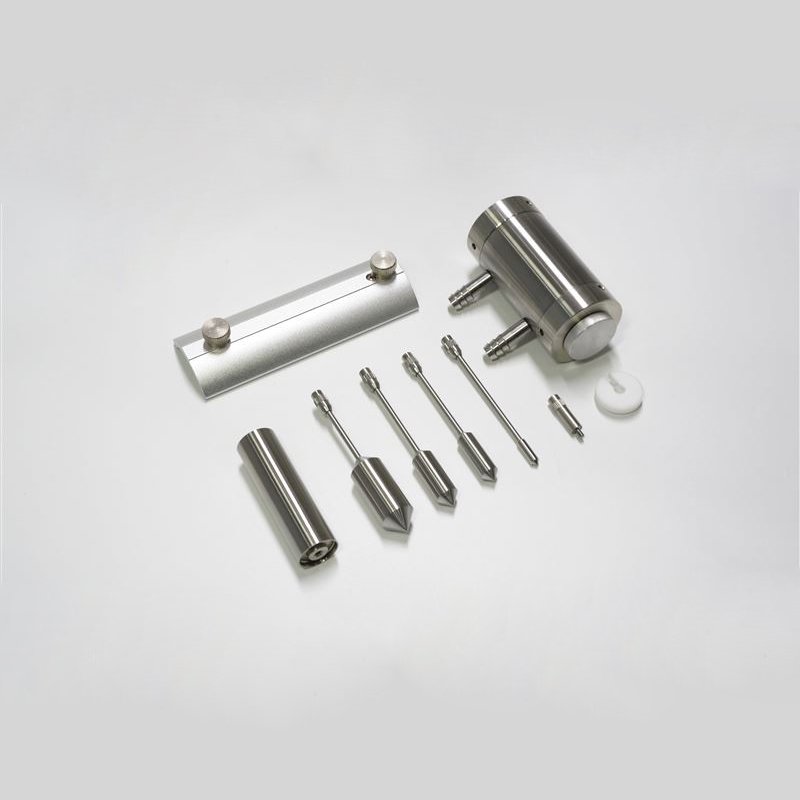

SSR-Plus Small-amount Sample Adapter
Equipped with a water jacket, the SSR-Plus Adapter supports water bath temperature regulation during testing.
